EPI22-1

Economizer™ Wood Burning Insert

Transform your masonry fireplace into an efficient, clean burning and cost-effective heating source with Timberwolf’s EPI22 Wood Burning Insert. The large firebox design accommodates 18˝ logs and allows for a long eight hour burn time.
72% Efficiency Rating

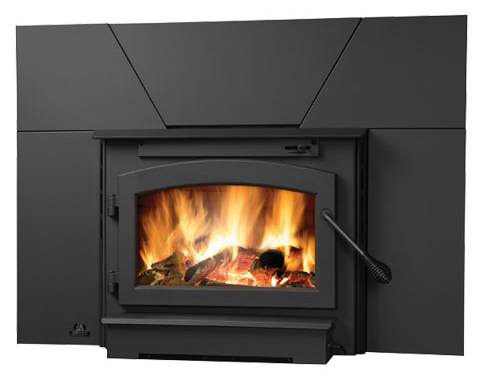

2300C With Standard Pedestal and Ash Pan
FEATURES & OPTIONS

  • EPA Certified 2020
  • Large ceramic glass viewing area
  • Minimum fireplace opening: 25 7/8˝w x 22˝h x 14˝d
  • Painted black cast iron door included
  • Dual blower system included
  • Includes painted black flashing with 3 ½˝ depth adjustment for installation versatility

*Wolf Steel Ltd. own test results showing realistic BTU’s using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood.

**Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house, geographical location and firewood used.

Model EPI22
BTU's 54,127
Firebox capacity 1.9 cu. ft.
Area heated** 800 - 2,000+
Burn time (hours) 8
Max log size 18"
Emissions (grams per hour) 2.25
Flue diameter top 6"
Blower kit available Included
